Operating Weight:1800kg
Kubota D722 Engine
Rated Power:10.4kW @ 2500rpm
Bucket Capacity:0.045m³
Max.Digging Height:2900mm
Max.Dumping Height:1950mm
Max.Digging Depth:1900mm
30° Gradeability

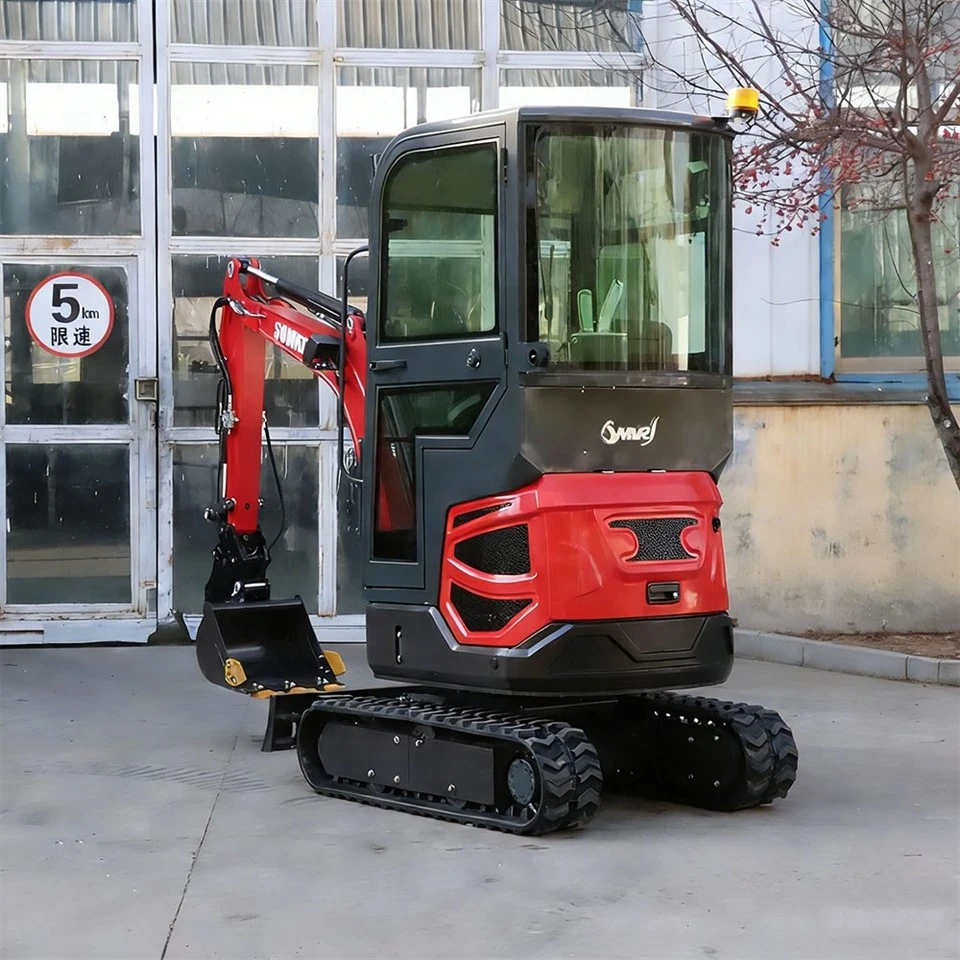

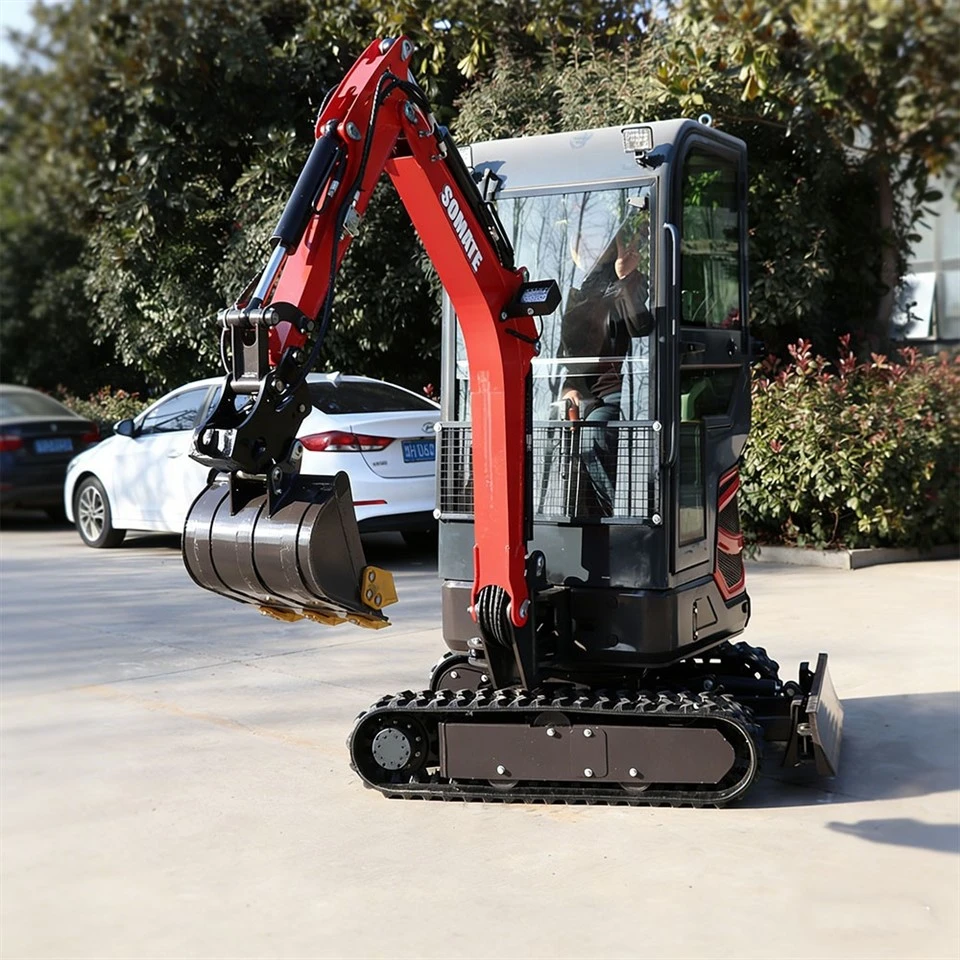

Compact 1.8-ton mini excavator with balanced structure and stable performance, designed for efficient operation in various working conditions.
Overall Specifications
Technical Specifications
| Item | Specification |
|---|---|
| Machine Type | Mini Excavator |
| Operating Weight | 1800 kg |
| Machine Weight | 1288 kg |
| Engine Model | Kubota D722 |
| Rated Power | 10.4 kW @ 2500 rpm |
| Bucket Capacity | 0.045 m³ |
| Bucket Digging Force | 7.5 kN |
| Hydraulic Pump | CBTG-F308-AL |
| System Working Pressure | 20 MPa |
| Hydraulic Oil Tank Capacity | 10 L |
| Fuel Tank Capacity | 12 L |
| Swing Speed | 12.3 rpm |
| Travel Speed | 2.5 km/h |
| Gradeability | 30° |
Dimensions & Working Range
| Item | Specification |
|---|---|
| Overall Length | 2250 mm |
| Overall Width | 1100 mm |
| Overall Height | 2200 mm |
| Track Width | 250 mm |
| Max. Digging Height | 2900 mm |
| Max. Dumping Height | 1950 mm |
| Max. Digging Depth | 1900 mm |
| Max. Digging Radius | 3227 mm |
| Min. Swing Radius | 840 mm |
Product Features
High-Performance Kubota Engine
Powered by the reliable Kubota D722 diesel engine, delivering stable power output, low fuel consumption, and dependable performance for demanding construction tasks.
Optional Features for Greater Flexibility
Optional telescopic chassis, folding dozer blade, and hidden motor design improve flexibility and stability, allowing easy operation in narrow spaces and confined working areas.
Excellent Digging Performance
With a maximum digging depth of 1900 mm and digging height of 2900 mm, the excavator provides efficient excavation for trenching, landscaping, and utility work.
Efficient Hydraulic System
The high-performance hydraulic system ensures smooth operation, responsive control, and reliable working efficiency under continuous operation.
Comfortable & Easy Operation
The ergonomic control layout provides precise operation, reducing operator fatigue and improving overall productivity.
Stable Travel Performance
The rugged tracked undercarriage provides superior grip and balanced weight distribution, allowing the machine to travel confidently across soft ground, slopes, and challenging job sites.
Wide Range of Applications

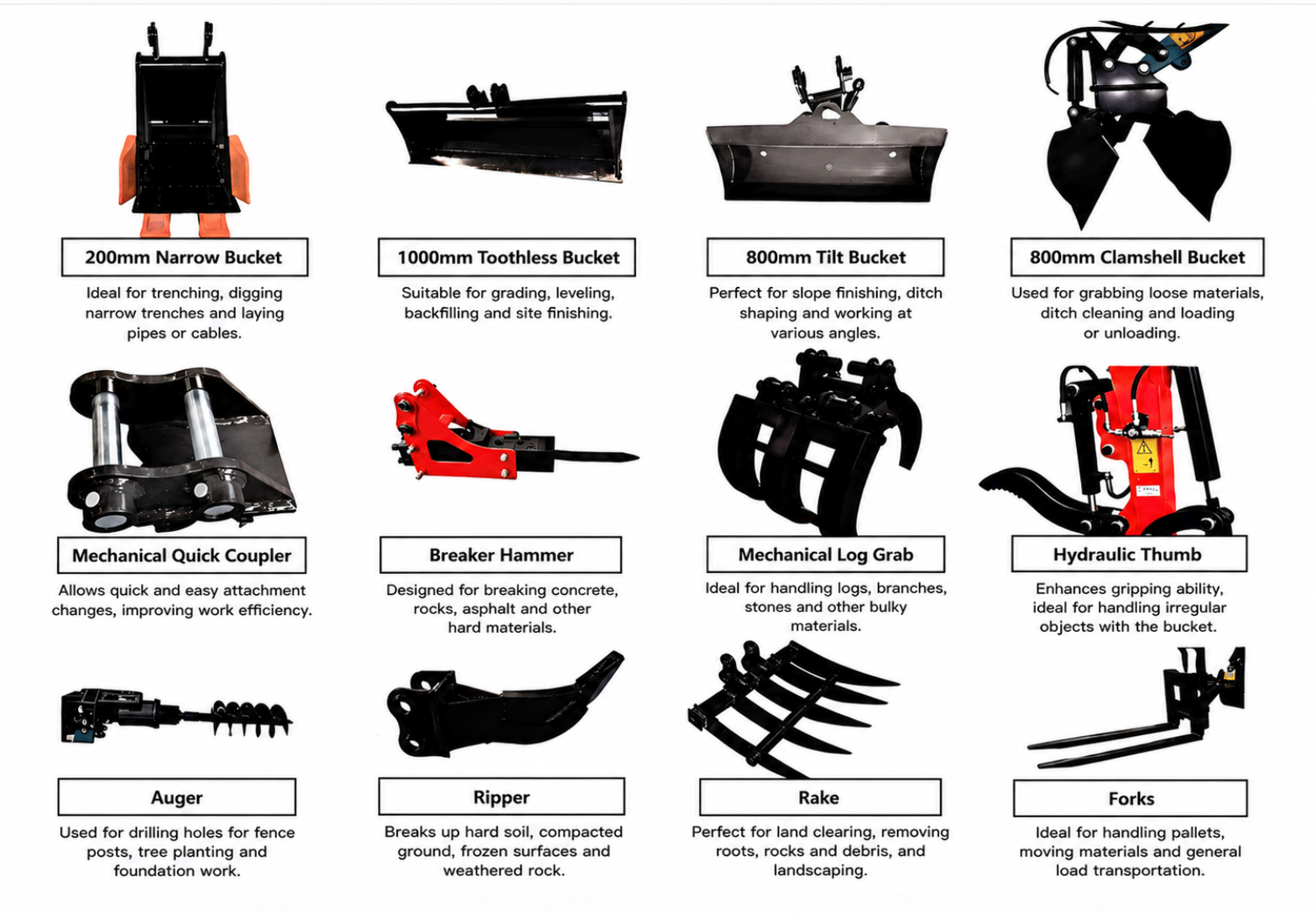

Supports various attachments, including augers, breakers, grabs, rakes, and quick couplers, providing greater versatility for multiple job applications
Featuring a compact design with optional telescopic chassis, folding dozer blade, and hidden motor, the machine can be equipped with optional attachments for excavation, demolition, landscaping, agriculture, material handling, and other applications.
Widely used for …
01
Farm & Ranch Operations
Designed for daily agricultural work, including irrigation trenching, drainage improvement, tree planting, fence post installation, and livestock facility maintenance.
02
Landscape Construction & Property Development
Ideal for shaping terrain, digging planting holes, building retaining walls, preparing foundations, and improving residential or commercial outdoor spaces.
03
Municipal & Infrastructure Maintenance
Suitable for repairing sidewalks, maintaining drainage channels, installing utility lines, road edge excavation, and other small-scale public works.
04
Construction Support & Material Handling
Perfect for foundation excavation, backfilling, site preparation, demolition support, and loading or moving construction materials with optional attachments.
Maintenance Tips
Monitor Engine Oil
Check the engine oil level before operation and change the oil at the recommended maintenance intervals to ensure reliable engine performance.
Maintain the Hydraulic System
Regularly inspect the hydraulic oil level and replace the hydraulic oil and filter as recommended to keep the hydraulic system operating efficiently.
Service the Air Filter
Clean or replace the air filter regularly, especially when operating in dusty environments.
Inspect Rubber Tracks
Check the condition and tension of the rubber tracks on a regular basis. Proper adjustment helps improve traction, stability, and track service life.
Grease All Pivot Points
Lubricate all grease fittings, including the boom, loader arms, bucket pivots, and other moving joints, to minimize wear and ensure smooth operation.
Keep the Loader Clean
Wash away mud, dust, grass, and other debris after each use to protect key components, simplify routine inspections, and extend the machine's service life.
Our Advantages
One-Stop Sales & After-Sales Support
We are committed to providing efficient communication, professional technical assistance, and dependable customer service. From selecting the right machine to long-term maintenance support, we help keep your equipment operating at its best.
Strict Quality Control & Fast Delivery
Every machine undergoes comprehensive testing and quality inspection before leaving the factory to ensure dependable performance. Supported by efficient production, secure packaging, and reliable logistics, we deliver your equipment safely and on schedule.
OEM & ODM Customization
From private labeling and custom colors to engine selection, attachments, and machine configurations, we offer tailored manufacturing solutions to support your brand and market development.
Certified for Global Markets
Manufactured to international standards, our machines are available with ISO, CE, EPA, and EURO 5 certifications, ensuring dependable quality, regulatory compliance, and reliable performance for customers worldwide.
Trusted by Customers Worldwide
We are committed to delivering high-quality equipment, responsive service, and dependable support, helping customers around the world achieve greater efficiency and long-term value.
